QSFP dR1

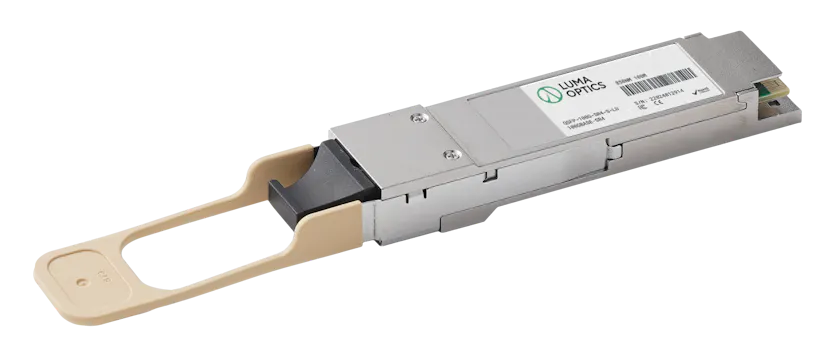

100GBASE-dr1-lu QSFP28
1310nm 500m | Optical Transceiver Module
Compliance:
| data rate | 100Gbps |
| Center wavelenght | 1310nm |
| Cable distance | 500m@SMF |
| power consumption | 4W |
| connector | LC |
| Transmitter Type | eml |
| Receiver Type | PIN |
| case temperature | 0 to 70°C (32 to 158°F) |
| modulation | 4x 25G PAM4 |
| Tx Power | -2.9-4dBm |
| Rx Power | -5.9~4.0dBm |
| protocol | SFF-8679, SFF_8636, OIF 28G NRZ, IEEE 802.3cu |
| media | SMF |
| Extinction Ration | 3.5dB |
| fec | NO |
| package | COB |
| Packaging Technology COB | |
| Vendor Name | Luma Optics |
| warranty | Lifetime |
| Typical application | Data Center 4 x 100G to 400G |
features
- Single cooled 100Gb/s channels EML TOSA
- Power consumption less than 4.0W
- Single channels PIN photo detector
- Up to 500m on SMF
