QSFP LR4

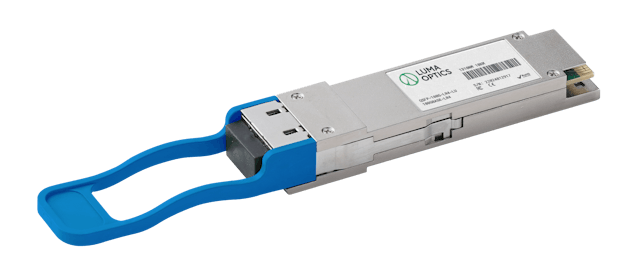

100GBASE-LR4-lu QSFP28
1310nm 10km | Optical Transceiver Module
Compliance:
| data rate | 100Gbps |
| Center wavelenght | 1310nm |
| Cable distance | 10km@SMF |
| power consumption | 3.5W |
| connector | LC |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| case temperature | 0 to 70°C (32 to 158°F) |
| modulation | 4x 25G NRZ |
| Tx Power | -4.3-4.5dBm |
| Rx Power | -8.6 - 4.5dBm |
| protocol | QSFP28 MSA，IEEE802.3ba |
| media | SMF |
| Extinction Ration | 4dB |
| fec | NO |
| package | BOX |
| Packaging Technology COB | |
| Vendor Name | Luma Optics |
| warranty | Lifetime |
| Typical application | Data Center |
features
- 4 cooled 25Gb/s channels LAN WDM DFB TOSA
- 4 channels PIN photo detector
- Power consumption less than 3.5W
- Up to 10km on SMF
- Single +3.3V power supply
